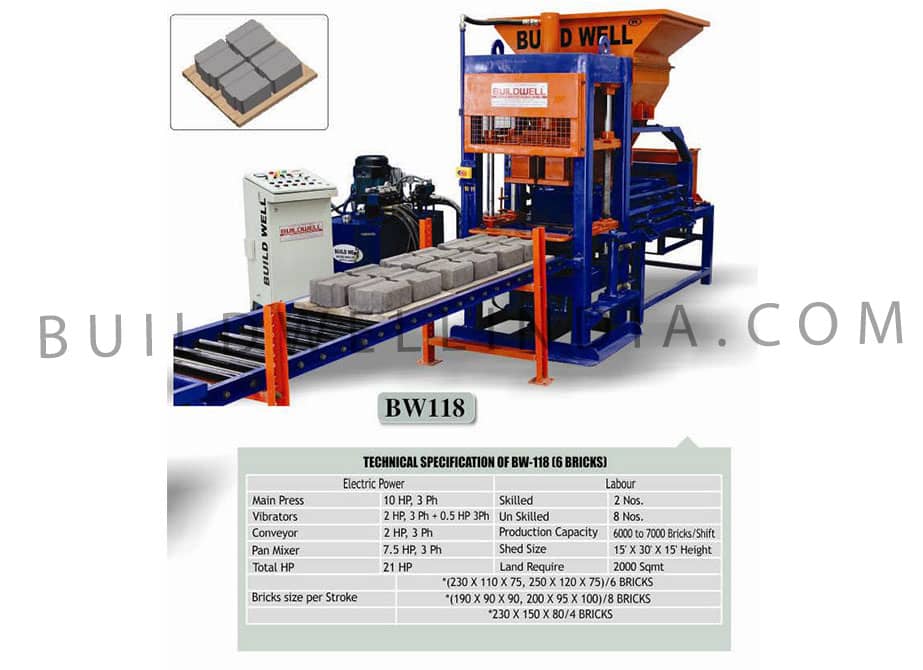

BW-118 Interlocking Block Making Plant

Technical Specifications

TECHNICAL SPECIFICATION OF BW-118(interlock)
electric Power		Labour
Main Press	10 HP, 3 Ph	Skilled	2 Nos.
Vibrators	2 HP, 3 Ph + 0.5 HP 3 Ph	Un Skilled	10 Nos.
Conveyor	2 HP, 3 ph	Production Capacity	8,000 Bricks/Shift
Pan Mixer	15 HP, 3 ph	Shed Size	15′ x 60′ x 15′ Hight
Hydraulic Hopper Power Pack	2 HP, 3 ph	Land Require	3500 Sqmt
Total HP	32 HP
Bricks size per Stroke	*(230 X 110 X 75, 250 X 120 X 75)/6 BRICKS
	*(190 X 90 X 90 , 200 X 95 X 100)/8 BRICKS
	*(230 X 150 X 80 & INTERLOCK BRICKS)/4 BRICKS
