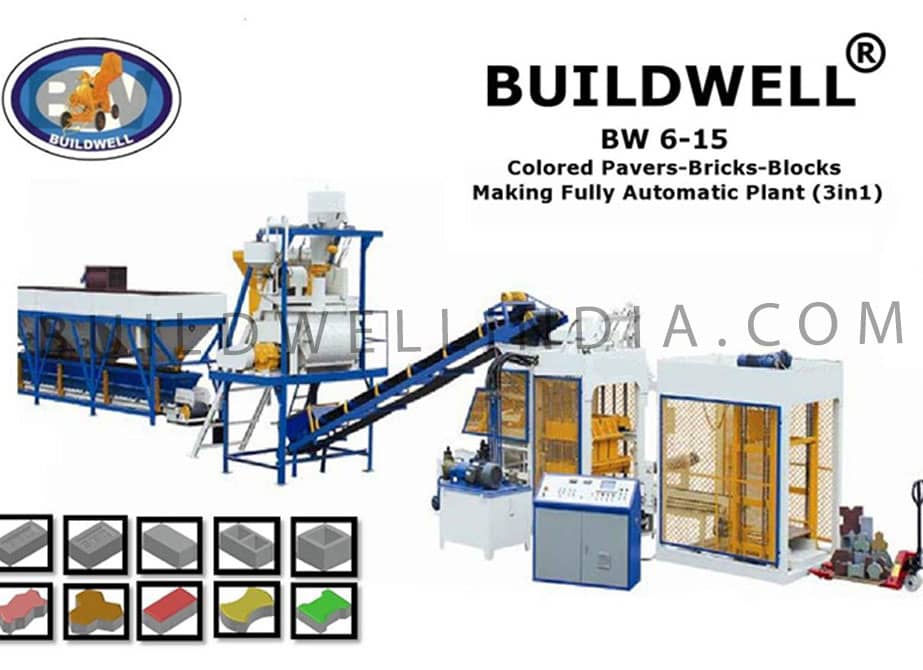

BW-6-15 Colored Pavers-Bricks-Blocks Making Automatic Plant

Technical Specifications

TECHNICAL SPECIFICATION OF BW- 6-15(BRICK-BLOCK AND PAVER)
electric Power		Labour
Main Press 24 HP		Skilled	2 Nos.
Vibrators	10 HP, 3 Ph X 2 Nos
Feeder	3 HP, 3 Ph	Un Skilled	12 Nos.
Palate	1 HP, 3 Ph	Production Capacity	37,800 Bricks/Shift
Power Pack	15 HP, 3 Ph
Block Conveyor	1 HP + 0.25 HP, 3 Ph	Shed Size	40′ X 100′
Stacker UP or Down – FW-BW	2 HP + 2 HP, 3 Ph
Conveyor	3 HP, 3 Ph	Land Require	3 Acer
Pan Mixer	25 HP, 3 Ph
Batching with Compressor	12.5 HP, 3 Ph
Cement Silo, Fly ash Silo, Screw Conveyor	12.5 HP, 3 Ph
Total HP	100 Hp
Item	Size (L X W X H)	Pcs./Mould	Pcs./ Shift
Blocks	400 X 200 X 200 MM	6	10,800
Bricks	230 X 110 X 75 MM	21	37,800
UniPavers		15	27,000
Blocks	400 X 200 X 150 MM	8	14,400
